Why Is My Barcode Missing or Unreadable on My Print Cover?

A barcode that looks fine on screen and one that actually scans are two different things. The gap between them usually lives in the file, not the press.

Your cover proof came back and the barcode looks off. Maybe it’s stretched, maybe it’s sitting on a background too dark to read, maybe it’s just not there at all. Either way, it’s the kind of thing that stalls an otherwise finished cover.

Here’s the direct answer: most barcode problems come down to three things — a scaling or resolution issue, a color-conversion problem that strips out the barcode’s pure black, or not enough clear, contrasting space around it.

I’m Daniel J. Middleton, and I’ve spent close to twenty years designing book covers for authors and publishers. Barcode verification is one of the last things I check on every cover file, because it’s easy to get right early and easy to break later without noticing.

This article covers what actually causes a missing or unreadable barcode, how much space it needs, and who should be placing it.

What Actually Causes a Barcode to Go Missing or Unreadable?

Three failure modes look nearly identical to an author but come from different places.

• Scale or resolution. Stretch a barcode even slightly off its aspect ratio, or drop in a version that’s too low-resolution for the finished trim size, and the bar widths stop reading correctly to a scanner even though it still looks fine to the eye. A rasterized barcode file is fine to use, and I use them constantly, as long as it holds full resolution at final print size.

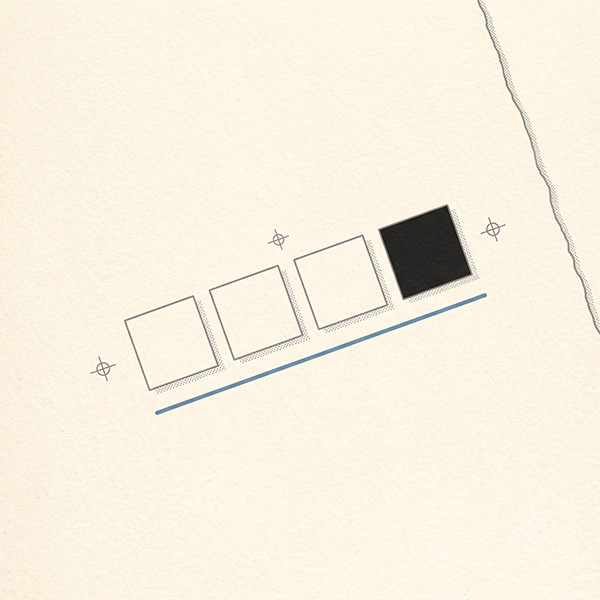

• A color-conversion problem. This is the one that trips up designers and authors most often without them realizing it. A correctly built barcode is 100 percent black in the K channel only, with C, M, and Y all at zero. Many cover files get built in RGB first, since a lot of design tools handle RGB more reliably than CMYK, and the conversion to final print-ready CMYK happens near the end. If the barcode isn’t rebuilt or verified after that conversion, it can pick up small percentages of cyan, magenta, and yellow instead of staying pure K. The barcode still looks black on screen, but that mixed ink coverage is often enough to make it unreadable at the register.

• Contrast. A barcode needs a clean, light background and real separation from anything printed near it. Cover designs that don’t reserve dedicated space for the barcode tend to end up with it sitting on a photo, a dark color block, or busy background texture, which is enough to make it unscannable even when the barcode file itself is otherwise correct.

A barcode that looks fine on screen but fails at the register is almost always a scaling, color-conversion, or contrast issue — not a printing defect.

How Much Space Does a Barcode Actually Need on the Back Cover?

Every platform wants a dedicated, undecorated white or light box, not just breathing room around the barcode itself.

On KDP, the reserved zone sits in the lower right corner of the back cover, and nothing inside that box should carry text, faces, or a busy pattern behind it.

On IngramSpark, the barcode area is a bit more generous, and needs to stay clear of any text or graphic elements not meant to be covered. Lightning Source, which shares IngramSpark’s print network and file logic, is explicit that the barcode has to be 100 percent black — meaning K only, with zero coverage in the other channels, not just black to the eye. That’s the exact distinction an RGB-to-CMYK conversion can quietly undo if the barcode isn’t checked afterward.

None of these figures are guesswork on my end, but they do shift from time to time as each platform updates its file creation guides, so it’s worth checking current specs before finalizing a cover rather than relying on a number from a year-old template.

Should You Let the Platform Place the Barcode, or Build Your Own?

KDP will auto-place its own barcode directly onto your uploaded file during production if you leave the reserved area blank. That’s the simplest, safest path for most authors.

IngramSpark works differently. They don’t drop a barcode into your design automatically the way KDP does. Their cover template generator includes a barcode on the template itself, which gets extracted and placed into the design by whoever is building the cover. Building or verifying your own barcode is closer to the default expectation on IngramSpark than it is on KDP.

I build barcodes myself on most covers I design, largely for publisher clients distributing across multiple platforms or covers that need a specific price embedded for bookstore sales. That gives more control over exactly where it sits and how it reads against the rest of the back cover design — but a self-built barcode still has to meet each platform’s exact formatting requirements, or the system will flag it and either request a corrected file or fall back to placing its own.

Either path works. What doesn’t work is treating the barcode as an afterthought dropped in at the last step, whether that means a stretched placeholder image, an unverified color conversion, or a reserved box that’s slightly too small for what actually gets placed there.

Is a Barcode Problem a File-Prep Issue or an Actual Print Defect?

If a proof comes back with the barcode visibly cut off, doubled up, or printed in the wrong spot entirely, that’s a production issue worth flagging to the platform directly. But if the barcode is present, correctly positioned, and still won’t scan cleanly in testing, that’s a file-prep issue — usually resolution, ink channels, or contrast — and the fix happens in the cover file, not in a support ticket.

Two checks catch most file-prep issues before a proof ever gets involved:

• Check the ink breakdown first. Open the barcode in your design software and confirm the K channel reads 100 percent, with C, M, and Y all at zero. If any of the other channels show coverage, the barcode is already compromised, whether or not it happens to scan today. No scanner needed to catch this one.

• Test with an actual scanner second. A barcode scanner app or a scanner gun aimed at the exported cover file, at true print resolution, will catch a scaling or contrast problem long before a physical proof does.

Spine text has the same reputation for looking fine until it’s placed into the actual production geometry — the same logic that applies to why spine text ends up off-center or missing on KDP applies here.

Getting the Barcode Right the First Time

A barcode that fails at the register isn’t a mysterious print flaw. It’s almost always something ordinary in the file: the scale, the resolution, an ink channel that didn’t survive a color conversion, or the space reserved around it. Whatever the specific cause, it’s typically something set once early in the design process and never rechecked as the rest of the cover changed.
